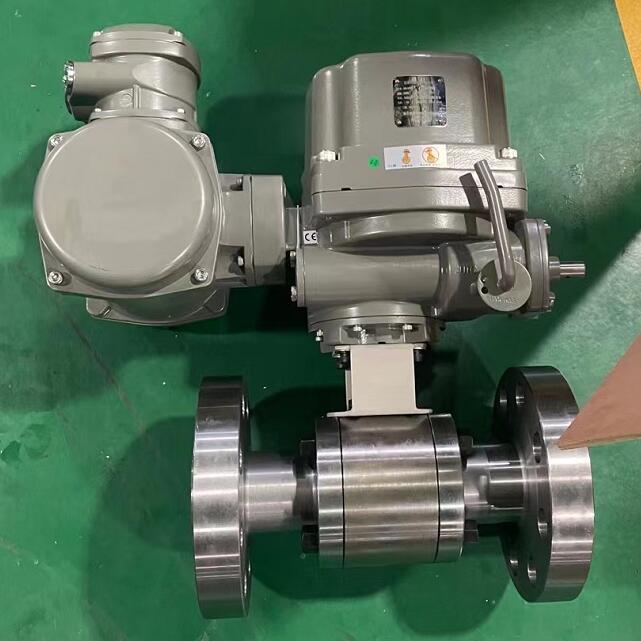

Electric flanged forged steel ball valve is composed of flanged end forged ball valve and switch type, integral type, adjusting type, intelligent type actuator. Electric flanged forged steel ball valve is easy to operate, high in reliability, ball valve and actuator adopts direct connection mode, built-in servo system, without the need for additional servo amplifier, input and output signals 4-20mA and 220VAC power supply can be controlled operation. Electric flanged forged steel ball valve has the advantages of simple connection, compact structure, stable and reliable operation.Electric actuated high pressure ball valve is an important type of electric valve, which is widely used in petrochemical industry and long distance pipeline.The shutoff is a partially perforated ball that rotates with the stem to open or close the valve. Electric flanged forged steel ball valve can cut off and circulate the medium in the transportation pipeline such as petroleum, chemical industry, papermaking, metallurgy, sewage treatment and oil tank truck.

Optional functions of electric actuator	switch type, integral type, adjusting type, intelligent type
Optional models of electric actuator	QM, QC series
Voltage	AC220V, AC110V, AC380V, DC12V, DC24V, DC110V
Nominal diameter	DN15mm ~ DN600mm
Nominal pressure	PN1.0MPa~PN10MPa,CL150-CL600
Applicable temperature	PTEE:-30~ +150℃ PPL:≦220℃ metal seal:≦450℃
Connection mode	flange
electric ball valve Body material	WCB,304, 316, 316L,etc.
electric ball valve ball material	A105,304, 316, 316L,etc.
Seat lining	PTEE, PPL, metal seal
electric ball valve Suitable medium	water, petroleum, acid, viscous fluid, slurry medium, etc.


Electric flanged forged steel ball valve technical parameter:
Supply voltage: AC220/380V, 50/60Hz
Output torque: 50N·M ~ 2000N·M,higher torque is optional
Action range 0 ~ 90° 0 ~ 360°
Action time 15 seconds /30 seconds /60 seconds
Protection device overheating protection
Ambient temperature -30° ~ 60°
Manual operation is the same as equipped handle operation
Limit electrical and mechanical double limit
Protection level equivalent to IP-65
ExdII BT4;ExdII BT6 can be customized for special requirements
Position measurement with optional switch or potentiometer
Drive motor 8W/E
Incoming line interface PE1/2 "incoming line lock

Electric flanged forged steel ball valve selection:
(1) Ball valve body parameters: nominal size, working pressure, process medium, use occasions, valve body materials and other parameters.
(2) Electric actuator parameters: power supply voltage, control mode, control signal (4-20mA,1-5V), action mode (electric-On-off)
