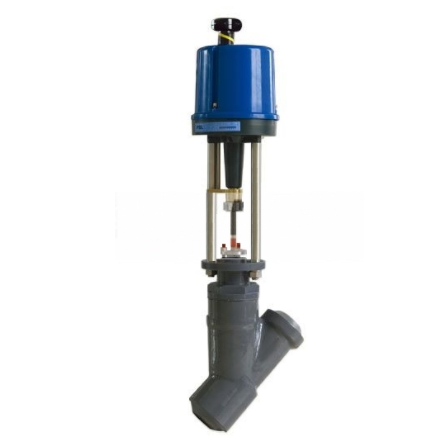

Electric Y type control valve

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Electric Y type control valve Feature

Electric Y type control valve is Y type globe structure for pressure and flow control,Electric Y type control valve can choose WCB,WC6,WC9,A105,F11,F22 according to the work pressure, and different material is optional according to the working temperature,the Electric Y type control valve adopts the top guide structure, compact structure, S streamlined fluid path, large flow, small pressure differential loss, wide adjustable range and accurate pressure or flow control.

Component name	Control Valve Material
Body/Bonnet	WCB/WCC/WC6/CF8/CF8M/CF3M
Valve spool/Seat	304/316/316L(overlaying stellite alloy)
Packing	Normal:-196～150℃ is PTFE,RTFE,>230℃ is flexible graphite
Bellows	304/316/316L
Gasket	Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
Control valve stem	2Cr13/17-4PH/304/316/316L

Electric Y type control valve Flow characteristic	Linear, percentage, quick open
Allowable range	50: 1 (CV<6.3 30: 1)
Rated Cv value	Percentage CV1.6~630 ，linear CV1.8~690
Electric temperature control valve Allowable leakage	Metal seal: IV grade（0.01% rated capacity） Soft seal: VI grade（foam grade） Leakage standard: GB/T 4213
Electric steam temperature control valve Performance
Intrinsic error (%)	±1.0
Return difference(%)	≤1.0
Dead zone(%)	≤1.0
Difference from beginning to end point(%)	±2.5
Rated travel difference(%)	≤2.5

Electric Y type control valve Type\ Method	Electric actuator
	Different actuator is optional according to pressure
	Intelligent integrated type
Usage	Regulating
Air supply pressure or Power supply voltage	Power: AC 200V±10% 50Hz Or Power: AC 380V±10% 50Hz
Connector	Normal type: cable inlet 2-PF(G1/2〞) Explosive proof: Protection jacket PF(G3/4〞)
Direct action	Input signal increase, stem descend, valve close.
Reaction	Input signal increase, stem ascend, valve open.
Input signal	Input/output4～20mA.DC
Lag	≤0.8%FS
Linear type	≤+1%FS
Environmental temperature	Standard type: -10℃～+60℃ With space heater : -35℃～+60℃ Explosive proof: -10℃～+40℃
Electric Y type control valve Accessories	Space heater (normal type) Non-standard accessories, need special customized notes.
