Pneumatic 3 PC thread ball valve

Control valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN15~50, NPS 1/2〞~ 2〞
Pressure：1000PSI/PN63
Medium：Water,oil,steam,gas
Temperature :-40～450℃
Body material：WCB LCB CF8 CF3 CF8M CF3M
Description：

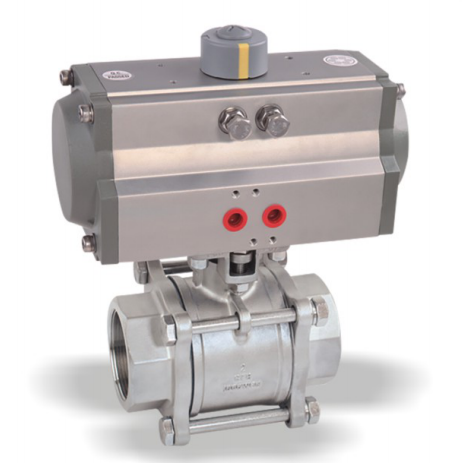

Pneumatic 3 PC thread ball valve decription
Pneumatic 3 PC thread ball valve with thread ends, Pneumatic actuator type, electric actuator and manual type is optional.Pneumatic three piece thread ball valve is stainless steel body,PTFE seat, pressure is 1000WOG with good performance.Pneumatic three piece thread ball valve is wildly used in food ,beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow.
Pneumatic 3 PC thread ball valve Features

1000PSI/PN63
Size: 1/4”~4”
Materials: S.S.304, S.S.316, A216 WCB
Full port
Investment casting
Blow-out proof stem
Locking device handle (option)
PED97/23/EC (CE0035) approved
Casting approved to AD2000-W0
Threaded: ASME B1.20.1, BS21, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
Welded: ASME B16.25 (SCH40), ASME B16.11
Clamped: ISO2852-1993
Inspection & testing: API598, EN12266
Applicable medium: water, oil, gas
Applicable temperature: -29℃~150℃

Pneumatic 3 PC thread ball valve technical requirement

Nominal diameter DN（mm）		25	40	50	65	80	100
Rated flow coefficient Cv	Full chamber type	14	30	55	100	135	230
Rated flow coefficient Cv	Shrinkage chamber type	6	12	20	40	54	92
Double action pneumatic actuator		Air supply pressure 400KPa
Model	Torque（N.M）	PTFE packing , metal seal allow differential pressure
ATD63	23.5	2.35	0.94
ATD75	46.5	5.0	2.84	1.49	0.57	0.33
ATD88	73.2			2.39	0.99	0.62
ATD100	106				1.54	0.99	0.30
ATD160	453						2.84

Pneumatic 3 PC thread ball valve accessories optional:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating function
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
