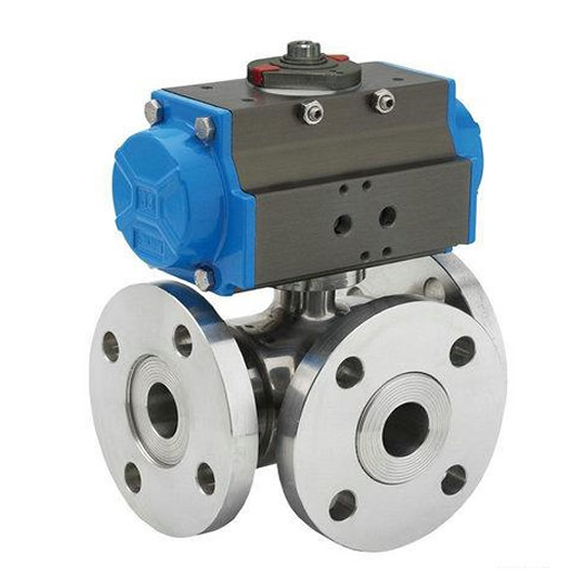

Pneumatic three way ball valve

Control valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN15~500, NPS 1/2〞~ 20〞
Pressure：PN16 ~ 100,150LB ~ 600LB
Medium：Water,oil,steam,gas
Temperature :-40～450℃
Body material：WCB LCB CF8 CF3 CF8M CF3M
Description：

Pneumatic three way ball valve description
Pneumatic three way ball valve has two kinds of flow pattern, one is of type L (3-way and 2-port) while the other is of type T (3-way and 3-port), which is subject to the customer application.Pneumatic three way ball valve is blow-out proof stem,anti-static design, Mouting flange is ISO 5211 Standard.

Pneumatic three way ball valve Applicable standards and specifications

Design and manufacturing: ASME B16.34/BS5351/API 608/ API 6D
Fire safe test: API 607/API 6FA
Anti static: API 608
Face to face: ASME B16.10
End flanges: ASME B16.5
Inspection and test: API 598/API 6D

Pneumatic three way ball valve Design descriptions

Full bore or reduced bore design
Bolted bonnet, split body
Floating ball type
Blow out proof stem
Fire safe construction
Anti static device
Stopper device
ISO 5211 mounting bracket
Flanged ends
Available with worm geared operator
Materials: A216 WCB, A105N, A182 F304, F304L, F316, F316L, A351 CF8, CF8M, CF3, CF3M
