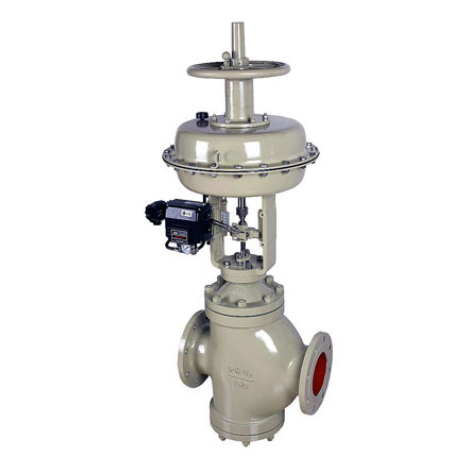

Pneumatic double seat globe control valve combines excellent high-pressure drop control performance along with the ability to handle dirty fluid applications. The dual port design provides a pressure balanced effect within the valve, which reduces actuator size and thrust requirements.

Dynamic force on plug tends to be balanced as flow tends to open one port and close the other. Reverse-Acting double portedGlobe-Style valve bodies normally have higher capacity than single-ported valves of same line size.

Many double-ported bodies reverse, so the control valve plug can be install as either push down to open or push down to close.

Metal to metal seating of double-seated control valve usually provides only Class II shutoff capability, although Class III capability is also possible.

Port-guided valve plugs of Pneumatic double seat globe control valve are often used for on-off or low-pressure throttling service. Top and bottom guided valve plugs furnish stable operation for severe service conditions.

Pneumatic double seat globe control valve Design Feature

·  Strong flow capacity

·  Fluid mechanics design idea

·  Various trim structure

·  Large guiding area for stable movement

·  Wide adjustable range and high adjusting precise

·  Floating seat with well sealing capability

·  Modularized integral structure design for easy inter-changeable

·  Apply to control various fluid mediums
