Model：

Port size：DN50-DN1200
Pressure：PN10-PN64 CL150-CL600
Medium：Water,steam,oil,etc.
Temperature :-29～450℃
Body material：WCB,WCC,CF8,CF8M,etc.
Description：

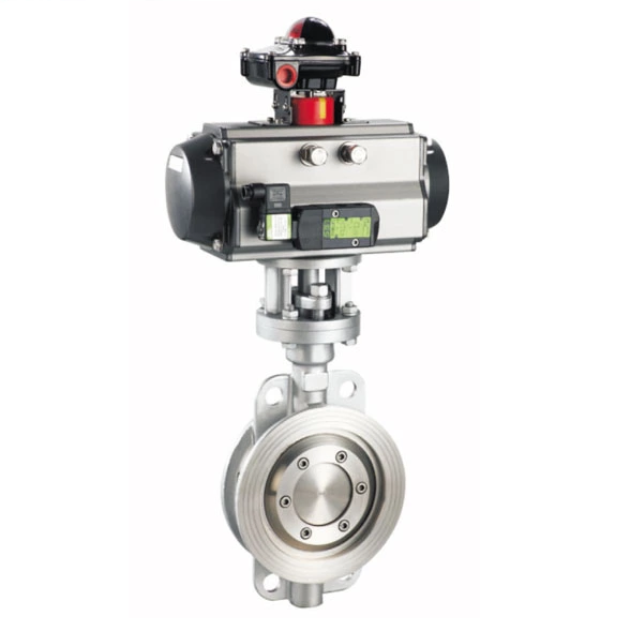

Pneumatic wafer type butterfly valve description
Pneumatic wafer type butterfly valve is metal to metal sealing multi-level structure, which is widely used in medium temperature<425°C of metallurgical, power, petrochmical, and municipal construction, drainage and industrial pipe, for regulating traffice and truncated fluid to use. ThePneumatic wafer type butterfly valve adopt three eccentric structure. The Sealing face of the Pneumatic wafer type butterfly valve seat and disc is made of the steel and stainless steel with good corrosion resistance, long useful life. With the two-way sealing function is our high performance wafer type butterfly valve.
Pneumatic wafer type butterfly valve feature

1. the Pneumatic wafer type butterfly valve adopt three eccentric struture.No war between the butterfly valve seat and butterfly valve plate, with more and more tightly sealing funtion.

2. The sealing ring of this Pneumatic wafer type butterfly valve are metal elastic sealing and metal seals which make the valve with bilateral direction sealing. All with excellent sealing properties, resistant to corrosion, long service life both in low pressure and high temperature.

3. The sealing surface of the disc is welding of cobalt-based alloy, with the advantage of wear resistance, long service life.

4. There is a two-way sealing function of the Pneumatic wafer type butterfly valve.No restriction from the media flows and spatial location, which can be installed in any direction.

5. The driving device can be installed multi-bit(rotation 90°or 180°), easy to use.

Pneumatic wafer type butterfly valve technical parameter

Electric actuators	Type: 1.double acting 2. single acting
Nominal diameter	DN50-DN600
Nominal pressure	1.0-1.6MPa
Applicable temperature	Stainless steel: -30~425°C
Connection	Wafer
Body material	Stainless steel, cast steel
Disc material	304, 316, 316L, nylon, cast steel, Ductile iron
Seat lining	Stainless steel
Applicable medium	Suitable medium: water, sea, water, food, natural gas, alcohols, salts, acids, alkalis, oil, steam, air, etc.

Wafer type butterfly valve pneumatic actuator info

Pneumatic actuator of GT series for pneumatic wafer type butterfly valve is driven by compressed air and it is the drive device for starting and closing angle stroke valves such as ball valve and butterfly valve.Besides, it is the ideal device for realizing long-distance concentration of pipelines or separately controlling automatic industrial pipeline.Electromagnetic valve, positioner (opening position indicator), feedback device, filter,pressure reducing valve, limit switches and hand operated devices.

Main parameters of GT actautors for pneumatic wafer type butterfly valve

1.Medium used: clean, dry and non-corrosive compressed air

2.Working pressure of air source : 0.4~0.7MPa

3.Temperature of working environment: standard: -20 ~+80

High temperature type: -20 ~+180 (the temperature can reach 200 in short time)

4.Rotary angle: 90 5

5.Electromagnetic valve power supply: AC220V/DC24V, or according to customers' needs
