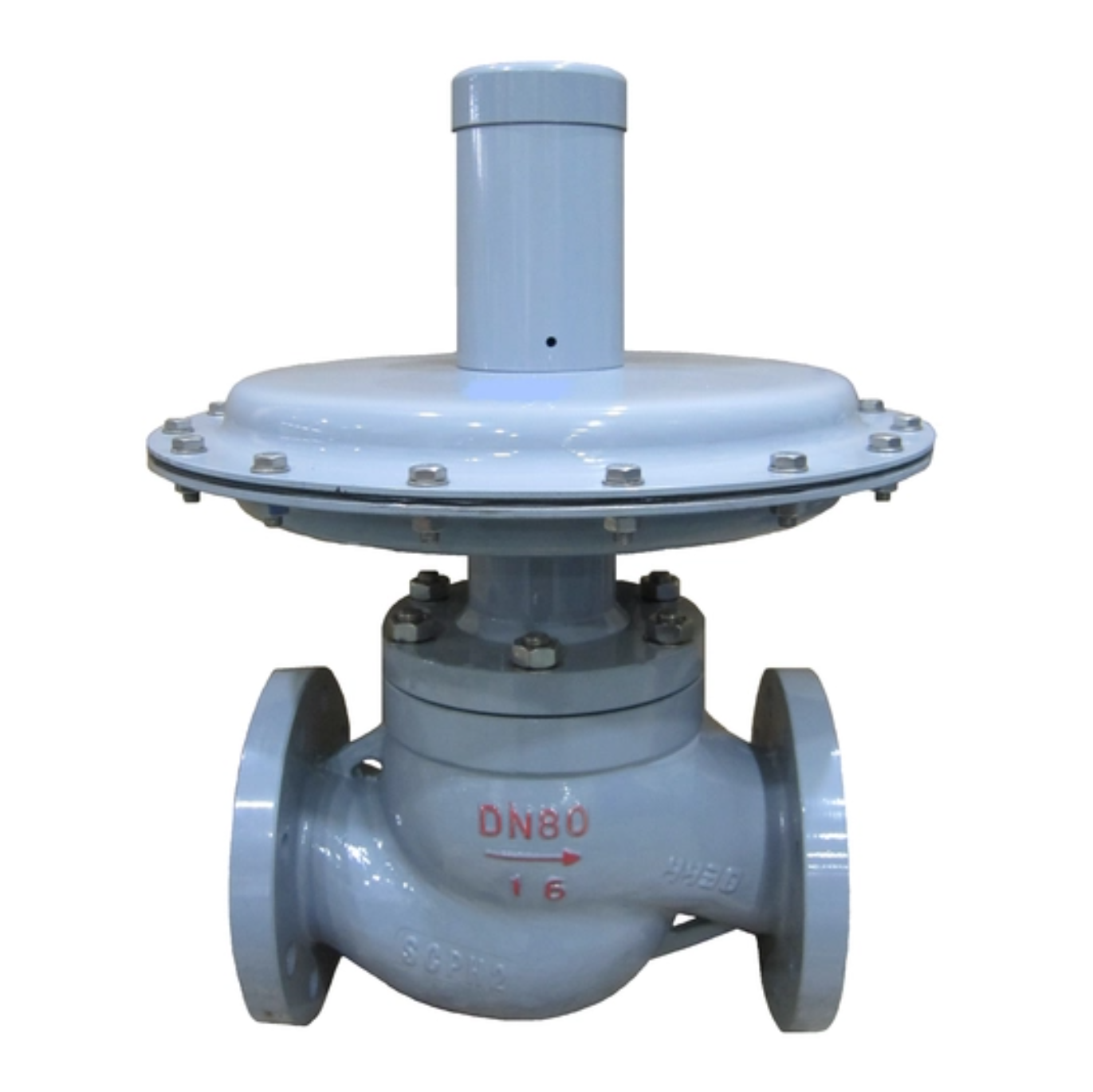

ZZVP Nitrogen Gas Pressure Reducing Valve

Control valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN15-DN100
Pressure：Class 150,PN10,PN16
Medium：Nitrogen,etc.
Temperature :-25～100℃
Body material：WCB, CF8,CF8M,etc.
Description：China ZZVP Self-Operated Pressure Regulator manufacturer, factory and supplier.

China ZZVP Nitrogen Gas Pressure Reducing Valve manufacturer, factory and supplier. ZZVP Nitrogen gas pressure reducing valve is an energy-saving pressure regulating valve that does not require external energy and only relies on the pressure change of the medium to be adjusted to achieve automatic adjustment and stable pressure difference. ZZVP Nitrogen gas pressure reducing valve can be applied to industrial furnace systems to control the flow ratio of two materials, such as gas and air, to achieve ideal combustion. ZZVP Nitrogen gas pressure reducing valve is used in the hydrogen-cooled generator set sealing oil system to control the pressure difference between seal oil and hydrogen to ensure reliability. seal. When the low pressure end of the differential pressure valve is open to the atmosphere, it is a micro pressure valve.

ZZVP Nitrogen gas pressure reducing valve specification:
Type: Straight-through casting ball valve
Nominal diameter: DN15～100
Nominal pressure: PN16
Connection type: flange type PN16 convex surface
Body and bonnet material: WCB (SCPH2)
CF8(304)CF8M(316)
Internal material: CF8 (304) CF8M (316)
Applicable temperature: -40～230°C
Filling: V-type PTFE
Spool type: single seat plunger type spool
Flow characteristics: quick opening
Sealed version: soft seal
Type: film type
(100, 280 signal actuator)
Signal interface: internal thread M10×1
Ambient temperature: -40 to +70 °C
Valve function: Type B and Type K
Type B spool initial position is normally open, closed when differential pressure increases
K type spool initial position is normally closed, open when differential pressure increases

ZZVP Nitrogen gas pressure reducing valve Flow coefficient CV value and stroke:

DN(mm)	20	25	32	40	50	65	80	100	125	150	200	250	300
CV	7	11	20	30	48	75	120	190	300	480	760	1100	1750
Rated stroke mm	8	8	10	10	14	20	20	25	40	40	50	60	70
