J145X diaphragm electric Solenoid remote control valve description

J145X diaphragm electric Solenoid remote control valve is installed in all kinds of feeding water system's pipeline and open or close the valve by manual or electric signal.The J145X diaphragm electric Solenoid remote control valve control and reaction is precise and quick.The closing speed is adjustable and the J145X diaphragm electric Solenoid remote control valve can close smoothly not to induce pressure repercussions.J145X diaphragm electric Solenoid remote control valve is easy to maintain with three phase solenoid valve.
J145X diaphragm electric Solenoid remote control valve Performance

Nominal Pressure
(MPa) Shell Test
(MPa) Sealing Test
(MPa) Fluids Fluids Temp
(°C)

1.0 1.5 1.1 Water 0-80

1.6 2.4 1.76

2.5 3.75 2.75

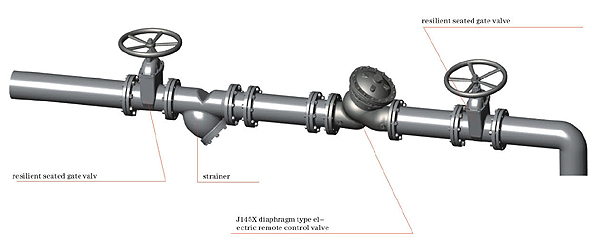

J145X diaphragm electric Solenoid remote control valve installation diagram

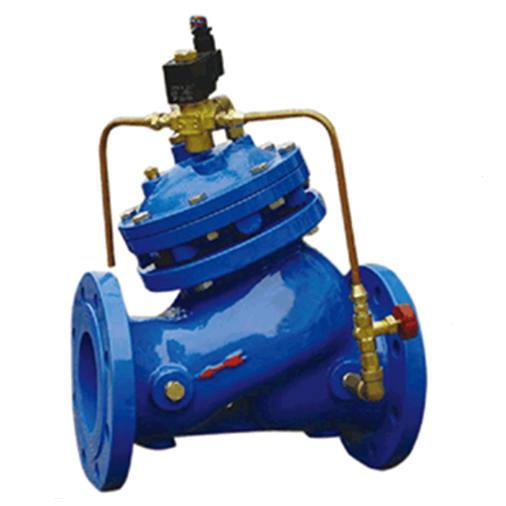

J145X diaphragm electric Solenoid remote control valve structure
