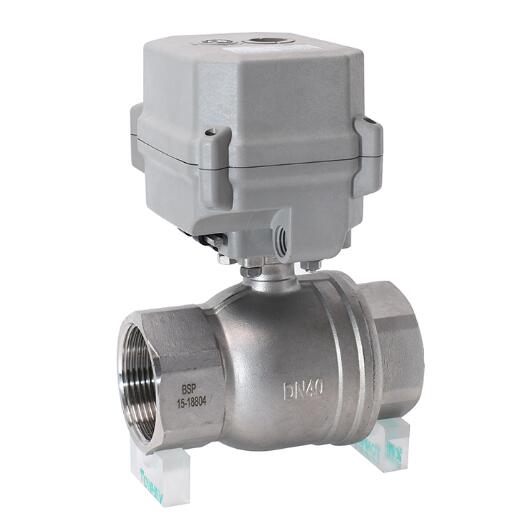

CF8 CF8M Stainless steel Electric Motorized Ball Valve

Control valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：1/2"~2" (DN15~DN50)
Pressure：PN10-PN16 CL150
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：CF8 CF8M CF3 CF3M or other stainless steel
Description：CF8 CF8M Stainless steel Electric Motorized Ball Valve Manufacturer, Factory And Supplier

CF8 CF8M Stainless steel Electric Motorized Ball Valve Manufacturer, Factory And Supplier. CF8 CF8M Stainless steel Electric Motorized Ball Valve working voltage: AC110V~230V, DC9~24V, size range from 1/2”~2”; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. CF8 CF8M Stainless steel Electric Motorized Ball Valve is applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries

CF8 CF8M Stainless steel Electric Motorized Ball Valve Feature:
1. Beautiful appearance, compact structure, high precision, large output torque, service life is not less than 70,000 times.
2. The actuator and valve can be assembled from multiple angles, which is convenient for users to allocate space.
3. Ball valve adopts floating soft seal structure, no drip leakage, suitable for heavy dirt and long-term no action occasions.
4. Protection grade IP67, can be used in relatively humid environment.

CF8 CF8M Stainless steel Electric Motorized Ball Valve performance:
