Metal material

Contact Product Part

304/316L(1.4404)

No-contact Product Part

304/316L(1.4301)

Provide EN 10204.3.1B certificate

Sealing Material

Standard

PTFE

Option

Body, STL

All Seal material coply with FDA 177.2800

Temperature

Working Temperature

-29°C~150°C(EPDM)

Sterilization Temperature

150°C(Max 20Min)

Pressure

Working Pressure

0~5 Bar(standard)

Accepting High Pressure Requirement

Control Air Pressure

5~8 Bar

Surface Treatment

Internal Surface

Ra ≤ 0.6um

External Surface

Standblasting

Connection

Connection Standard

Welded End: DIN 11850 series 2

Welded End: INCH Ripe standard

Connection: Weld, Thread, Clamp, Flange

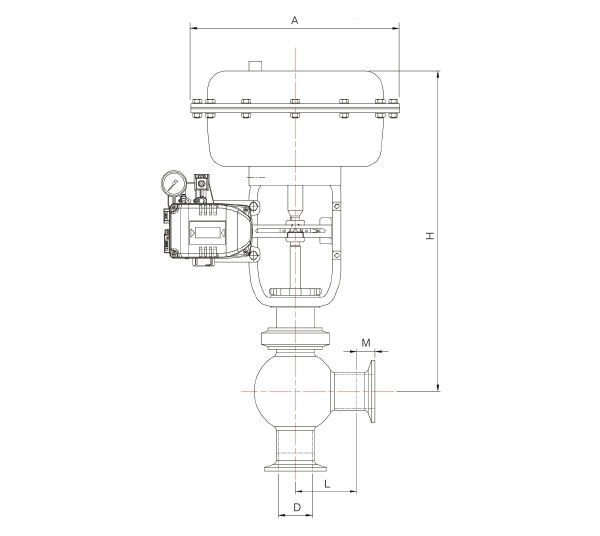

Size

L

D

A

H

M

DIN

3A

DIN

3A

DN40

1-1/2”

65

41X1.5

38.1X1.65

281

500

21.5

12.7

DN50

2”

75

53X1.5

50.8X1.65

281

500

21.5

12.7

DN65

2-1/2”

90

70X2.0

63.5X1.65

363

630

28

12.7

DN80

3”

110

85X2.0

76.2X1.65

363

635

28

12.7

DN100

4”

120

104X2.0

101.6X2.11

520

890

28

15.8
