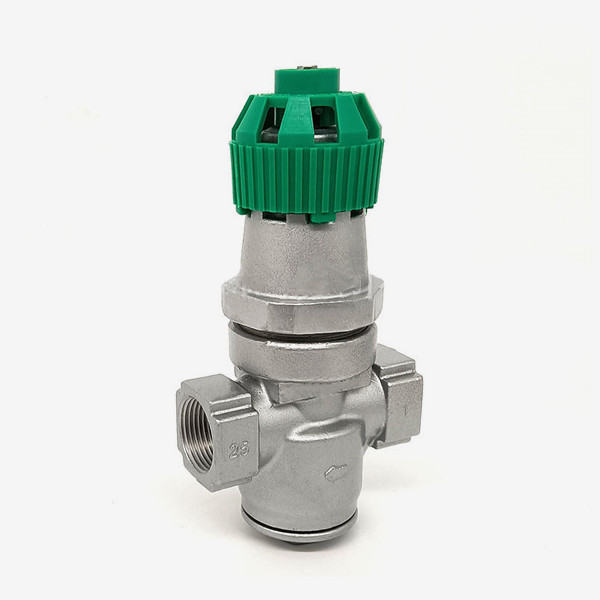

CY14H Bellows Pressure Reducing Valve

Control valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN0.5-DN50
Pressure：PN10-PN64 CL150-CL600
Medium：Water,steam,oil,gas,etc.
Temperature :-29～350℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Description：CY14H bellows pressure reducing valve manufacturer, factory and supplier.

CY14H bellows pressure reducing valve manufacturer, factory and supplier. CY14H bellows pressure reducing valve internal stainless steel bellows structure, simple and durable structure, used in high sensitivity requirements, installation space requirements demanding pipelines. CY14H bellows pressure reducing valve Connection mode: Internal thread (G, NPT).

CY14H bellows pressure reducing valve structure characteristics:

CY14H bellows pressure reducing valve is a direct acting bellows pressure reducing valve, mainly composed of valve seat, valve disc steel ball, bellows assembly, spring and other parts, by adjusting the spring to set outlet pressure, when the outlet pressure is reduced, the valve disc opening increases, when the outlet pressure reaches the predetermined pressure, mainly through the medium of the valve pressure acting on the area of the bellows sensing to adjust the spring Realize the function of reducing pressure and regulating pressure.

When in use, the pressure can be adjusted by rotating the plastic hand wheel, no tool adjustment, easy connection and installation. The internal structure uses bellows, and the sealing surface is equipped with a filter protection device, which is not easy to damage the internal parts and greatly improves the service life.
