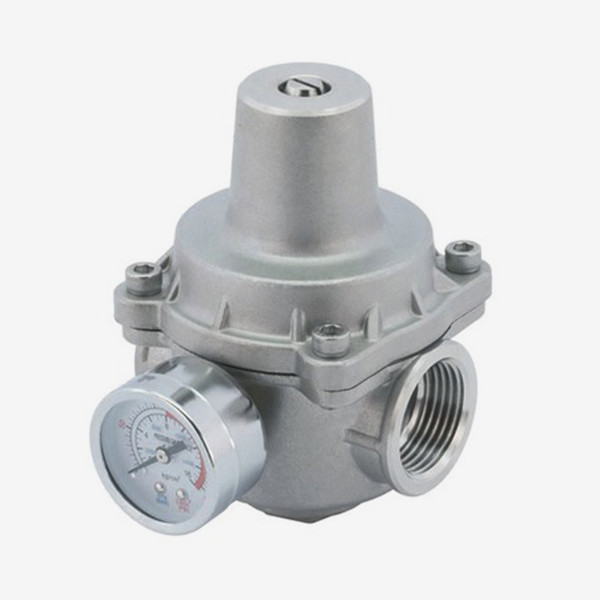

YZ11X pressure reducing valve manufacturer, factory and supplier. YZ11X pressure reducing valve is direct action diaphragm type pressure reducing valve which is mainly used in a variety of building water supply system, fire protection system, central air conditioning system, heating system and so on. YZ11X pressure reducing valve branch pipe pressure, can make the water supply pressure distribution balance, eliminate part of the water supply overpressure, optimize the water supply zoning of high-rise buildings. YZ11X pressure reducing valve can replace the zone FM variable speed pump, in the fire water supply system can replace the zone pump, used in the household water supply system, can protect most of the water appliances.
YZ11X pressure reducing valve features:
1. Direct action diaphragm structure, simple internal structure, no blocking resistance, excellent performance, long service time.
2. Dirty and anti-scale, no filter, no bypass pipe, simple pipe distribution, can save a lot of space and pipe distribution cost.
3. The outlet pressure is precisely adjustable, and in general, it can be considered that the outlet pressure is not affected by the inlet pressure (the change of the outlet pressure is 8% of △P1).
4. Good hydraulic characteristics, small pressure loss, pressure reduction ratio can reach more than 10:1.
5. YZ11X pressure reducing valve can meet a variety of pressure reduction requirements, suitable for branch pipe pressure reduction system.
YZ11X pressure reducing valve working principle
The outlet pressure of the branch reducing valve acts on the bottom surface of the diaphragm and the bottom surface of the valve disc. When it is greater than the set value of the spring, the spring is compressed to make the valve disc close. As long as there is no water flowing downstream, the outlet pressure will basically remain at the set value (the change amount is 8% of the change amount of the inlet pressure); When water is used downstream, the outlet pressure drops and the spring pushes open the diaphragm to open the pressure reducing valve. After continuous flow of water for a while, the opening of the pressure reducing valve produces a self-damping effect, so that the opening and closing action tends to be stable.
Possible failure causes of the YZ11X pressure reducing valve
1. Frost damage, in cold areas should pay attention to heat preservation.
2. The water flow direction is installed incorrectly, the pressure reducing valve becomes a check valve, and the outlet pressure is 0.
3. The spring is too tight to close, and the pressure reducing valve will go through P2=P1.
4. The leakage of the bypass pipe causes P2 to deviate from the set value. In view of the durability of the pressure reducing valve, it is recommended not to install the luminance pipe.

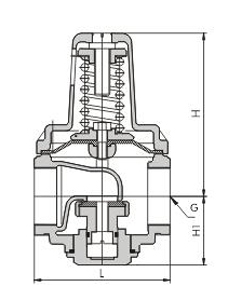

YZ11X pressure reducing valve dimension
|
DN（MPa）
|
Diemension（MM）
|
Weight
|
|
MM
|
in
|
H1
|
L
|
H
|
φG
|
（Kg）
|
|
15
|
1/2
|
31
|
60
|
76.5
|
59
|
1.2
|
|
20
|
3/4
|
31
|
75
|
76.5
|
73
|
1.2
|
|
25
|
1
|
36
|
88
|
85
|
81
|
1.4
|
|
32
|
11/4
|
42
|
93
|
98
|
81
|
1.5
|
|
40
|
11/2
|
45
|
98
|
102
|
85
|
2
|
|
50
|
2
|
54
|
130
|
117
|
98
|
2.65
|
